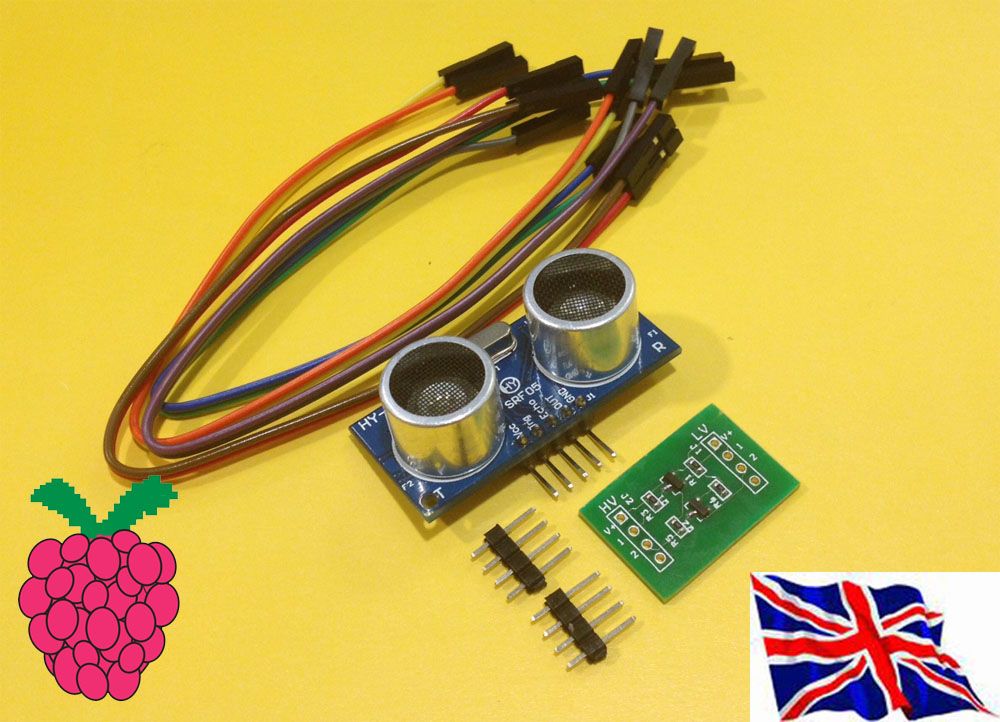

HY-SRF05  Ultrasonic sensor module

   with 2 channel Logic Level converter & 8x 20cm male to male cable

SRF05 Ultrasonic sensor SPEC

Ultrasonic sensor module Description :

• Working Voltage : 5V(DC)
• Static current: Less than 2mA.
• Output signal: Electric frequency signal, high level 5V, low level 0V.
• Sensor angle: Not more than 15 degrees.
• Detection distance: 2cm-450cm.
• High precision: Up to 0.2cm
• Input trigger signal: 10us TTL impulse
• Echo signal : output TTL PWL signal
• Mode of connection:
• 1.VCC
• 2.trig(T)
• 3.echo(R)
• 4.OUT
• 5.GND
• Use method:
• Supply module with 5V, the output will be 5V while obstacle in range,

or 0V if not. The out pin of this module is used as a switching output when

anti-theft module, and without the feet when ranging modules.

2 channel Logic Level Converter Description :

The logic level converter is a small PCB which safely allows you to interface devices

 which steps down 5V signals to 3.3V signals and step up 3.3V signals to 5V.

The converter has 2,  inputs and outputs and can be used with I2C, SPI, UART, etc.

The board needs to be powered via two sources, 5V and 3.3V and your data lines

are linked via pins 1 to 2 on each side so an input on pin 1 will be converted to the

 lower or higher output on the adjoining pin 1

ultrasonic sensor & 2 port Logic Level converter demo

  2 x DC 5V motor      1x WiFi USB dongle

  1x HY-SRF05 Untrasonic sensor module

  1x 2 channel Logic Level converter

  1 x  Raspberry Pi type B- V2 512MB

  1x RS-Pi- 4USB hub Board

  1x Rs-Pi-L293D-3 Motor Board

ultrasonic use Raspberry Pi GPIO 23,24

Vcc +5V  GPIO23 for Trig    GPIO24  for Echo    Out  -x    GND -  GND

Trig, Echo  input to 2 channel Logic Level converter ( HV side) ,

THe LV side input to GPIO 23,24 to our board

support our Pi_Scratch software   Detail

 after broadcast "t28  e29 " & "Update"    T28 Trig in GPIO28  E29 Echo in GPIO29

  in Sensing --> Slider , you will see the " UltraSonic"  in the list

Sonic.py  demo

command    sudo python Sonic.py  23 24

 23 Trigger pin     24  Echo pin  ( you can use other GPIO pin)
