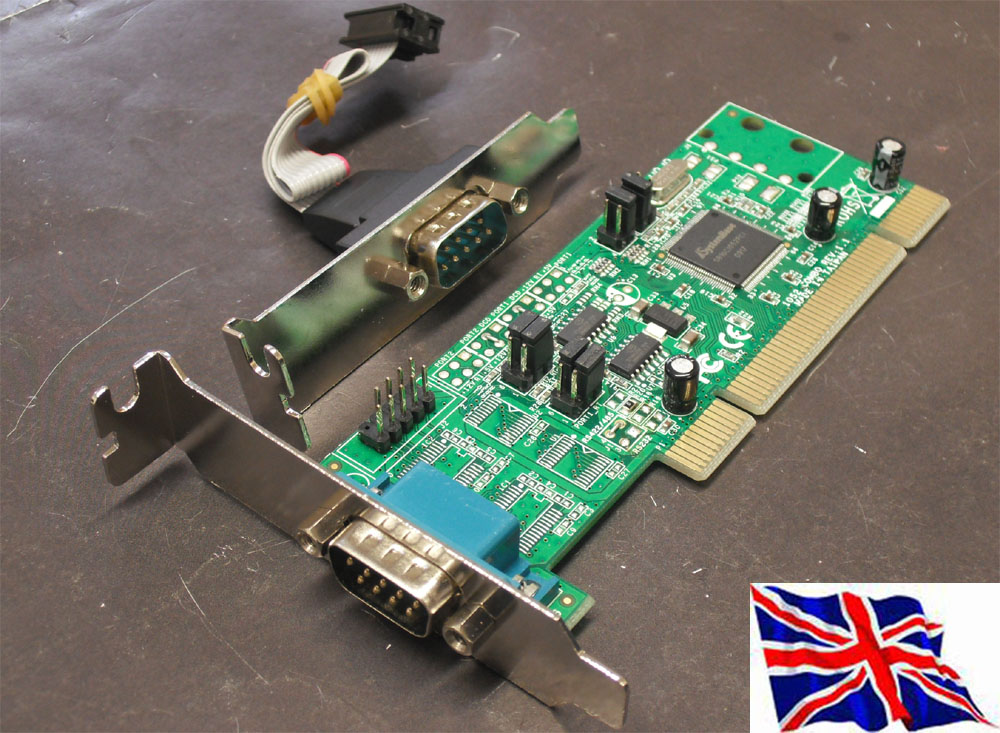

PCI RS422/RS485 SERIAL 2 PORT CARD 16C1050 with Low Profile Bracket It's real COM Port in your computer, high compatible with serial type device. The 2-Port PCI Serial Adapter Card (RS422/RS485) with 161050 UART adds four DB9 RS422/RS485 serial ports, using a single PCI expansion slot. The PCI serial card offers a high performance 16C1050 UART and supports both 2-wire and 4-wire RS485 modes. The card delivers an efficient single-chip design and a large 256-byte transit/receive FIFO buffer that work together to provide high-speed serial communication while reducing the overall load on the system CPU. With the included standard and low profile/half-height brackets, this PCI serial expansion |
card suits a broad range of system form factors, and is a perfect addition for connecting RS422/485 serial devices to a host computer. For added versatility, the RS422/RS485 adapter is able to accommodate 3.3 or 5V PCI/PCI-X slots. Features Jumper pins for RS422/485 toggling 16C1050 UART with 256-byte Deep FIFO Supports Hardware and Software flow control Supports 2-wire and 4-wire RS485 modes Supports maximum data transmission rate of 12.8kbps Supports PCI Power Management 1.1 Compliant with PCI Local Bus Specification 2.3 Applications Add RS422 and RS485 (2 or 4-wire) support to a Desktop, Server or Embedded system For use in industrial environments with serial networking devices, high speed modems, monitoring equipment, long distance communication devices and printers Ideal for commercial and industrial applications such as POS networks, ATMs, bank teller stations, and CNC based production lines Works for industrial process control and factory automation applications OS Support Windows 10, Windows® 7 (32/64bit)/ Vista(32/64)/ XP(32/64) Windows® Server 2008 R2/ 2003(32/64)/ 2000 Linux 2.4.x/ 2.6.x |
