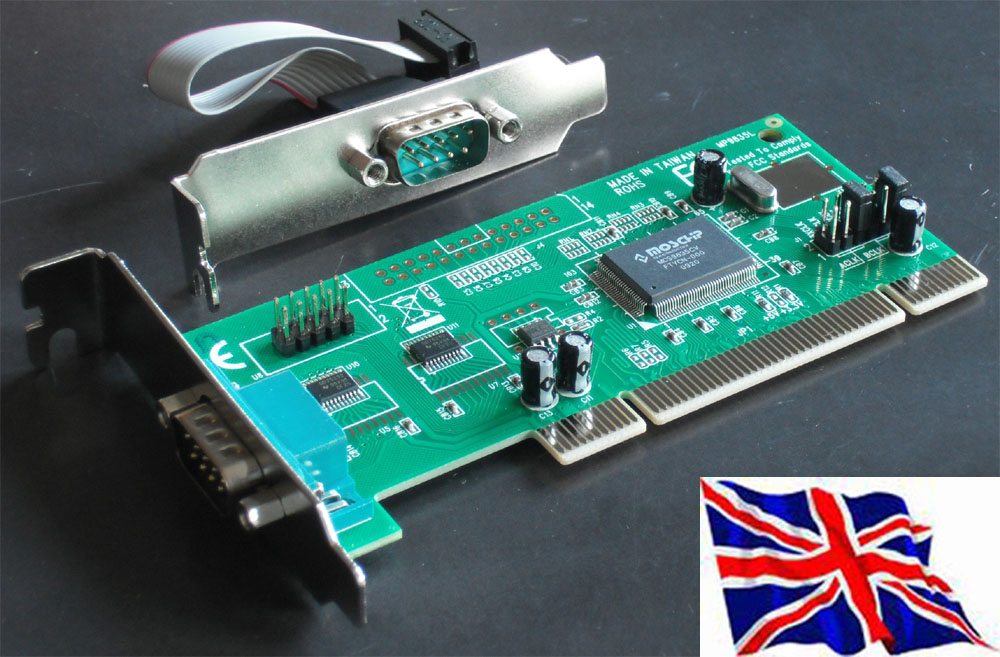

PCI one chip solution( MCS9835CV) It's real COM Port in your computer, high compatible with serial type device. * Provides two DB9 RS232 ports * 16C550 compatible UART controller on-board * 16 byte transmit-receive FIFO (UART) * Programmable baud rate generator * Fast data rates up to 115200bytes/s (serial ports) * Software programmable mode selects * Works with various types of RS232 serial devices including modems, |
PDAs, label printers, bar code scanners, digital cameras, and more * Supports Windows® DOS/95/98/ME/NT/2000, XP, Server 2003 ,Vista and Linux
This card provide select a clock speed for each internal UART
Serial Port clock select guide
Port 1 Port 2 115.2k * 230.4k 460.8k *Default setting
ACLK 1.8432 3.6864 7.3728
BCLK 1.8432 3.6864 7.3728
|
