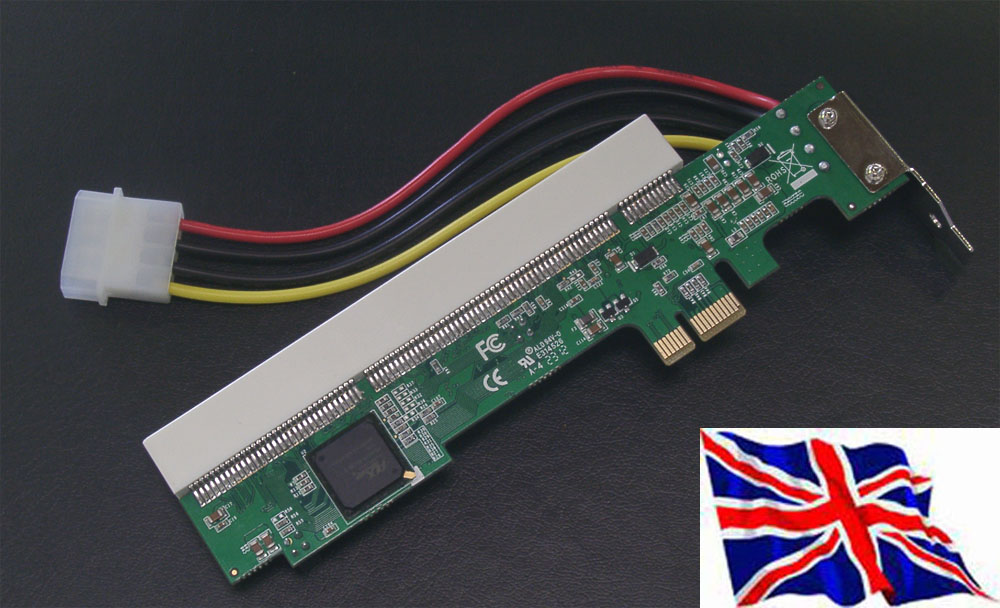

The PCI Express x1 to PCI-X Adapter lets you install PCI/ PCI-X card into a  PCI Express x1  slot

  on a server or other motherboard.

  In Forward Transparent Bridge mode, Configuration cycles originate

from the Host on PCI Express  fabric, and are delivered to the PCI/PCI-X

Bus segment, by way of the card allow the use  of conventional PCI/PCI-X boards

and components in a PCI Express System.

 Features

• Physical  ;PCI-X female connector allows PCI/PCI-X cards to fit
• Single PCIe x1 board edge connector for insertion into standard PCIe x1 motherboard slot.
• From factor based on PCI-X electrical and Mechanical addendum to the PCI Local Bus Specification, Revision 2.0a.
• PCI-X protocol at 64-bit and PCI Local Bus Specification Revision 3.0.
• PCI Express Base specification , Revision 1.0a
• PCI Bus speeds-25,33,50 and 66MHz
• PCI-X Bus speeds 50,66,100 and 133MHz

Applications

• Use old PCI/ PCI-X card in to PCI express base motherboard

Chipset   PLX PEX8114

Broad operating system support including device drivers for

 Windows® 2000, Windows® XP(32/64)

 Windows® Vista(32/64), Win7 (32/64)
