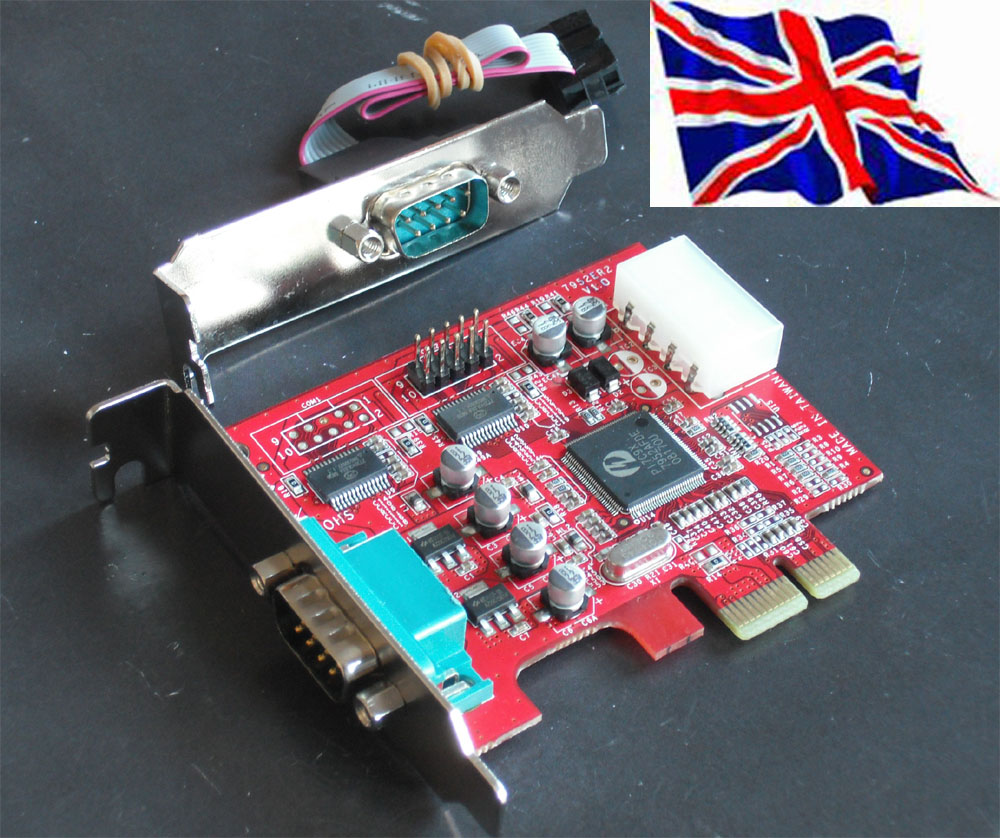

2 Ports RS232 RS422 RS485 Combo (16C950)PCI Express PCIe Card With Power & Low Profile Bracket The card is specially designed to allow power output from the ninth pin of the connector to enable power up of the connected devices without power adapter. The card can set each individual port with 5v,12v or RI (No Power) User can also choose to draw the needed power from the external system power supply. It's real COM Port in your computer, not USB to COM port |
2 Ports RS232/422/485 (Software Control) Fully compliant with PCI Express Card Specification 1.1 Two 16C950 UART Serial Ports 128-byte assigned FIFO 4-wire RS-422/485 and 2-wire RS-485 applications RS232 Speed up to 230kbps RS422/485 Speed up to 115.2Kbps OS Support: Windows® 2000, XP, Server 2003 ,Vista, Linux kernel 2.6.x Accessories: 1 x Manual, 1 x Driver CD 1x 2nd Serial port Cable with Low Profile Bracket |
