PCI EXPRESS PCIe Card SATA III x1 eSATA III x1 6Gbps

(SUPPORT XP, VISTA 32/64, Windows7 32/64)

PCI-e one chip solution , ASMEDIA ASm1061 chip

x1 PCI Express to two ports of Serial ATA, enables Serial ATA PHY up to 6Gbps high speed interface,

following Serial ATA Revision 3.0 specification.

General Features

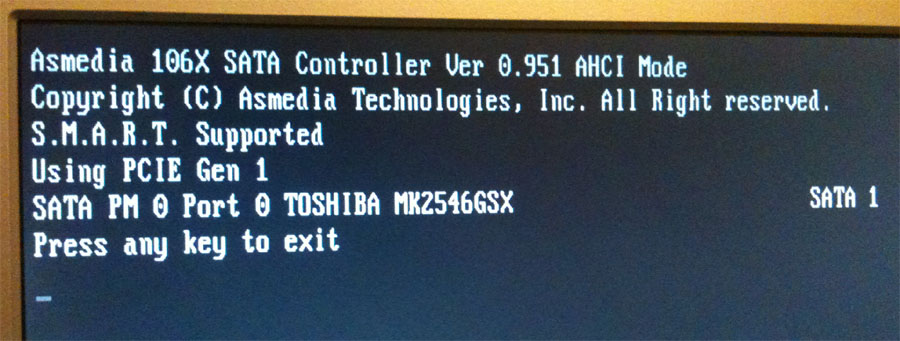

- Option Rom support through 64K Byte SPI flash
- 20MHz external crystal
- Integrated 3.3V to 1.2V switch regulator
- 3.3/1.2V Power Supply
- Industry Specifications Compliance:

   PCI Express Base Specification Rev. 2.0
   Bus Master Programming Interface to IDE ATA Controller Rev. 1.0
   PCI Express Card Electromechanical Rev . 2.0
   Serial ATA AHCI Spec. Rev.1.3
   Serial ATA Revision 3.0

PCI Express Features
- x1 PCI Express lane for 2.5 and 5GHz signaling
- Single virtual channel
- SSC support
- ECRC and Advanced Error Reporting capability
- 100MHz differential PCI Express reference clock in
- Maximum Payload up to 128 bytes

Serial ATA Features
- 2 ports Serial ATA PHY for 1.5, 3.0 and 6.0GHz signaling
- Support Native Command Queue
- Support Gen 1m and 2m SATA PHY
- Support Port Multiplier
