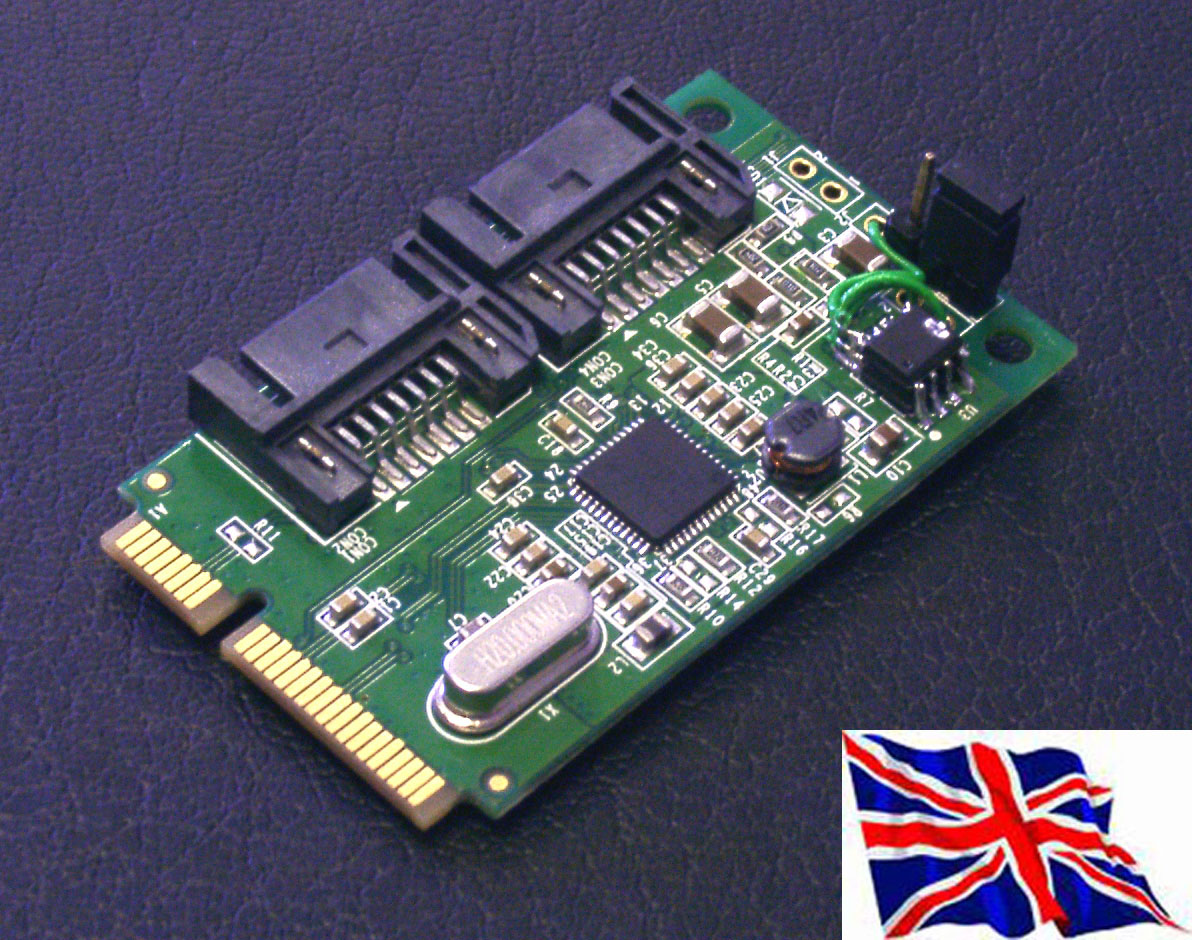

Special modify with two Flash Memory use jumper to choose IDE & AHCI mode

                             Firmware V0.951 AHCI mode

            Firmware V0.951 IDE mode

The 2 Port Mini PCIe to SATA III Controller Card lets you add 2 SATA 6.0 Gbps connectors to a small form factor or embedded system, through a Mini PCI Express (Mini Card) expansion slot.
Perfect for upgrading the capabilities of a system that would typically have a very limited number of internal ports, the Mini PCIe to SATA controller card is compatible with all types of Serial ATA devices, including hard drives (HDDs), Solid State Drives (SSD), and optical drives (CD/DVD/BD).
A versatile solution for internal storage applications,

Mini PCI Express to two ports of Serial ATA, enables Serial ATA PHY up to 6Gbps high speed interface,
following Serial ATA Revision 3.0 specification.
General Features
- Option Rom support through 64K Byte SPI flash
- 20MHz external crystal
- Integrated 3.3V to 1.2V switch regulator
- 3.3/1.2V Power Supply
- Industry Specifications Compliance:
PCI Express Base Specification Rev. 2.0
Bus Master Programming Interface to IDE ATA Controller Rev. 1.0
PCI Express Card Electromechanical Rev . 2.0
Serial ATA AHCI Spec. Rev.1.3
Serial ATA Revision 3.0

Serial ATA Features
- 2 ports Serial ATA PHY for 1.5, 3.0 and 6.0GHz signaling
- Support Native Command Queue
- Support Gen 1m and 2m SATA PHY
- Support Port Multiplier

Applications
Add SATA III ports to systems with mini PCI Express slots, such as some mini-ITX and smaller boards
Add internal SATA III ports to your small form factor system build
