Express/34 1394a x1 + 1394b x1

Out of stock

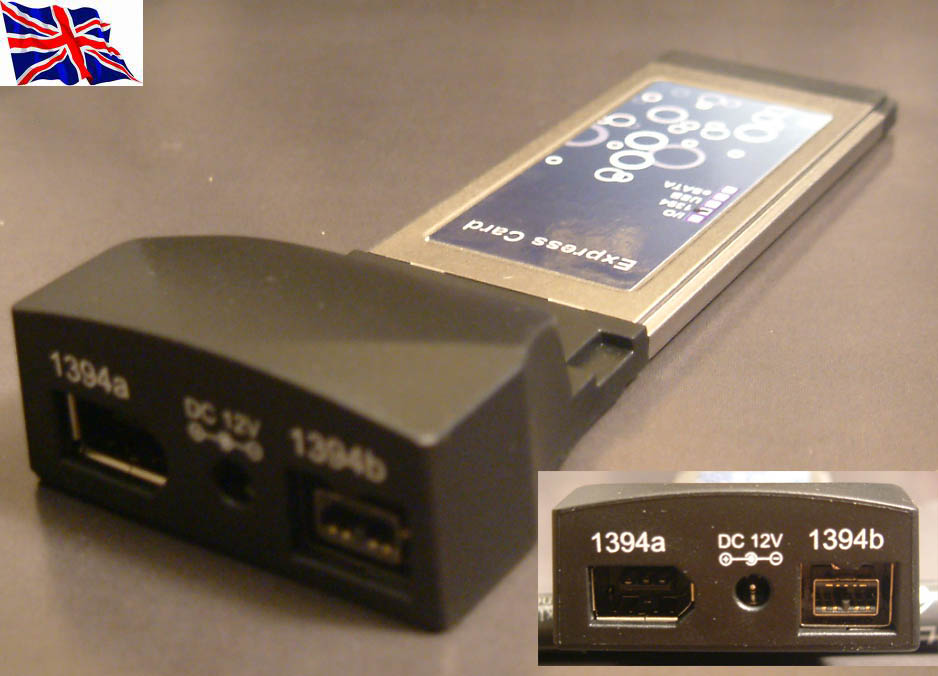

EXPRESS /34 Firewire 1394a x1 + 1394b x1 Express Card

(SUPPORT Vista/Win7)

PCI-e one chip solution

FEATURES

* Fully compliant with PCI Express specification

* With one external 1394b/FireWire 800 9-pin bilingual ports and one external 1394a/FireWire 400 6-pin bilingual ports

* Supports automatic handshake mode

* Supports cut-through mode completions without any buffer.

* Supports Windows

HARDWARE

Interface	Card Bus Express/54
Type	IEEE 1394b & IEEE 1394a
Chipset	LSI FW643E
Port	Supports one independent IEEE 1394b and one independent IEEE 1394a channels
	Serial bus data rates of 100 / 200 / 400 / 800 Mbits/s
	Easy to install and use
	Backward compatible with 1394a/FireWire 400
	Fully supports provisions of IEEE 1394a-2000 and 1394-1995 standard for high-performance serial bus.
	Supports link-on as a port of the internal PHY core-link interface.
	Supports arbitrated short bus reset to improve utilization of the bus.
	Supports parallel processing of incoming physical read and write reguest.

OS Support	Windows 2000/XP/2003/Vista/Win7
