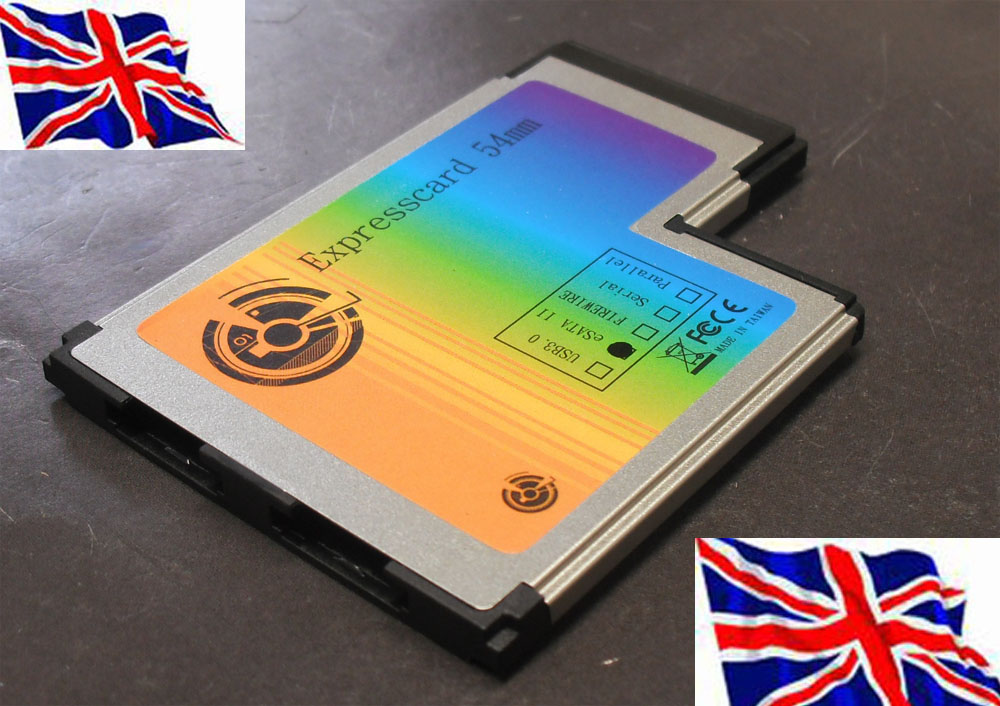

NEW EXPRESS eSATA II  2 Port Express CARD 54mm

  Slim & Recessed Design


(SUPPORT VISTA, Win 7 , MAC)

Adds 2 high speed eSATA ports to your laptop computer

 Recessed Design

2Ports 3Gbps SATA II with NCQ, Port Multiplier in ExpressCard/54

This ExpressCard/54 Host can upgrade your Notebook computer to have one SATA II Channels.

The board provides a 2X 2.5Gbps ExpressCard/54 interface on the host side and dual, fully

compliant SATA II 3Gbps ports on the device side to access Serial ATA mobile external and

internal storage devices such as hard disk drive, ZIP drive, CD-ROM, CD-RW, DVD-ROM

FEATURES

o      48 bits LBA can Break Capacity-Limit to Support HDD larger than 137GB

o      Supports 1-lane 2.5Gbps ExpressCard/54

o      Linux 32bit / 64bit drivers supported for Fedora Core2, Fedora Core3, Fedora Core4, RHEL 4.0, RHEL 4.0 Up1, SuSE 9.0 SP1 RC5,; ;SuSE Pro 9.3 by SiliconImage SiI3132.

o      Compliant with PCI Express Specification, revision 1.0a

o      Completely with drivers for Windows NT, Windows 2000, Windows XP and Windows Server 2003

o      Hot-plug capability

o      Supports SATA II transfer rate of 3.0Gbps

o      Fully compliant with Serial ATA 1.0 specifications

o      Supports two independent Serial ATA channels

o      Independent Link, Transport, and data FIFO

o      Independent command fetch, scatter/gather, and command execution

o      Supports Legacy Command Queuing (LCQ)

o      Supports Native Command Queuing (NCQ)

o      Supports Non-zero offsets NCQ

o      Supports Out of order data delivery NCQ

o      Supports FIS-based switching with Port Multipliers

o      31 Commands and Scatter/Gather Tables per Port

o      Supports 64bit / 32bit Windows Vista

o      Fully RoHS compliant

o   Support Mac OS 10.4.X , 10.5.x, 10.6.X
